11 Port Outdoor PoE Switch with 2 Uplink & 1 SFP, IP65 Waterproof, All-in-one Box, 100/1000Mbps Mixed, Unmanaged, 120W Built-in Power, IEEE802.3af/at/bt, 6KV Lightning Protection, Plug & Play
Product details
| Management number | 209100767 | Release Date | 2026/03/29 | List Price | $66.00 | Model Number | 209100767 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 19 Port Outdoor PoE Switch: 15 x ( PoE+ ) 10/100 Mbps RJ45 ports, 1 x (PoE++) 10/100/1000 Mbps RJ45 port, 2 Gigabit Uplink Ports, 1 Gigabit SFP Port, 300W built-in power supply, Input Voltage Range 90~240V; Port 1~15 Transmission Distance ( 10/100Mbps 130meters; 10Mbps Auto-adaption 250meters); Port16 Transmission Distance( 10/100/1000Mbps 130meters).
- Power Over Ethernet: 1-14 PoE+ (802.3af/at) ports providing up to 30W per port and 15-16 PoE++ (802.3af/at/bt) ports providing up to 60W per port, supports total PoE budget up to 300W （Please note: If your device support 24V passive PoE, not support IEEE802.3af/at/bt 48V PoE, it will not be compatible）
- AI Watchdog Function: PoE 1~16 ports Support AI Watchdog, When the data or power transmission between the poe port and the terminal device is abnormal, the corresponding poe port of the device will automatically detect the problem and restart the connection.

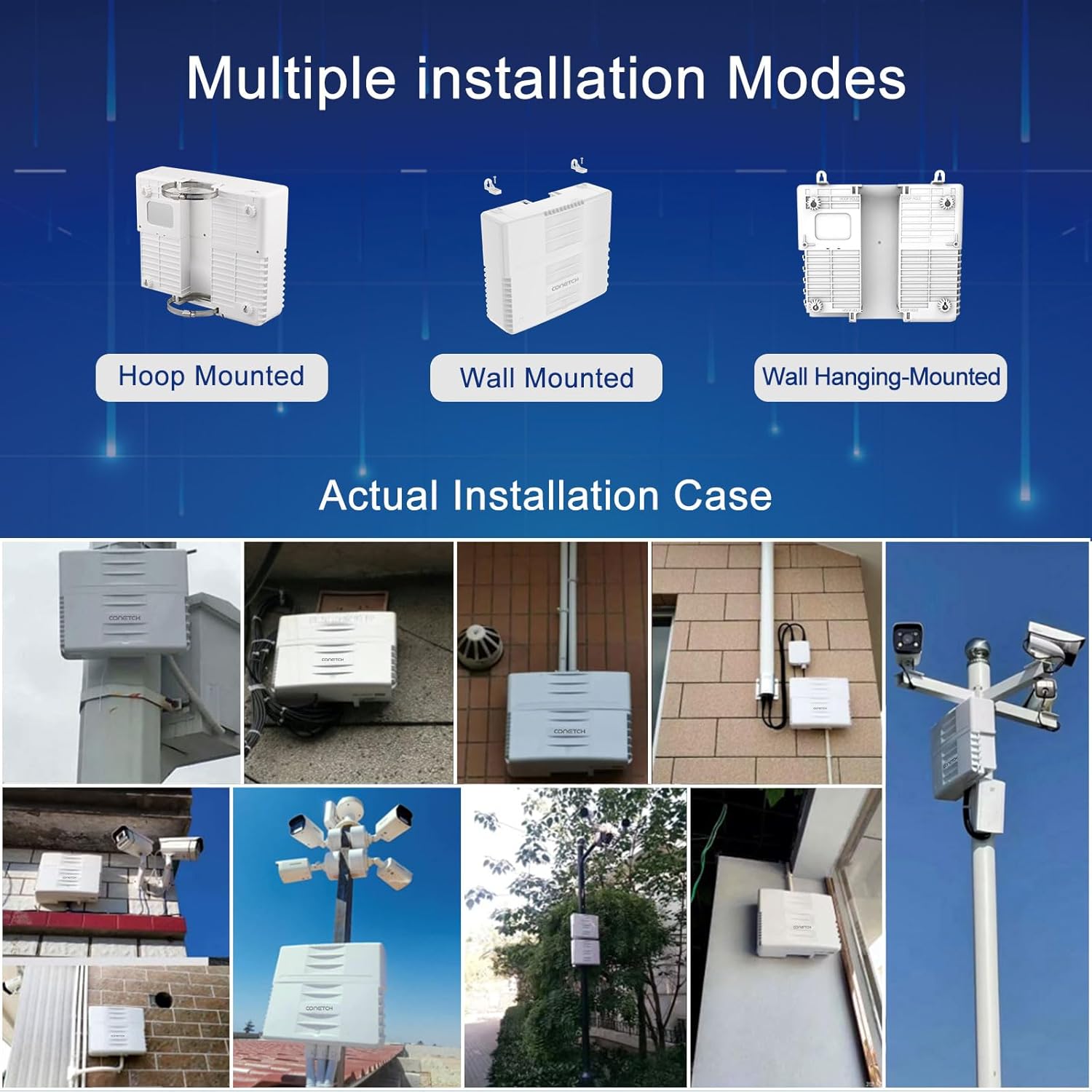

- IP65 Waterproof: Industrial housing design, integrated top cover, PC/ABS high polymer alloy material, extraordinary toughness, waterproof indoor and outdoor full-time, Flexibility to mount anywhere you need it.
- Stable and Security: 6KV lightning protection, 8KV Electro-Static discharge Protection, wide temperature range -30°C~60°C , stable operation, easy to maintain network status.Unmanaged plug-and-play ethernet switch, setup with no software to install or configuration needed. If you have any questions, please contact our official support and we will provide the best after-sales service.
| Brand | CONETCH |
|---|---|
| Color | White |
| Voltage | 240 Volts (AC) |
| Platform | No Operating System |
| Item Weight | 1.9 Kilograms |
| Switch Type | Unmanaged |
| Manufacturer | CONETCH |
| Model Number | 11端口 120W |
| Maximum Power | 120 Watts |
| Mfr Part Number | CON-P4804F6 |
| Number of Ports | 11 |
| Number of Layers | 1 |
| Data Transfer Rate | 1000 Megabits Per Second |
| Upper Temperature Rating | 60 Degrees Celsius |
| Item Dimensions L x W x H | 12.2"L x 10.2"W x 3.9"H |
