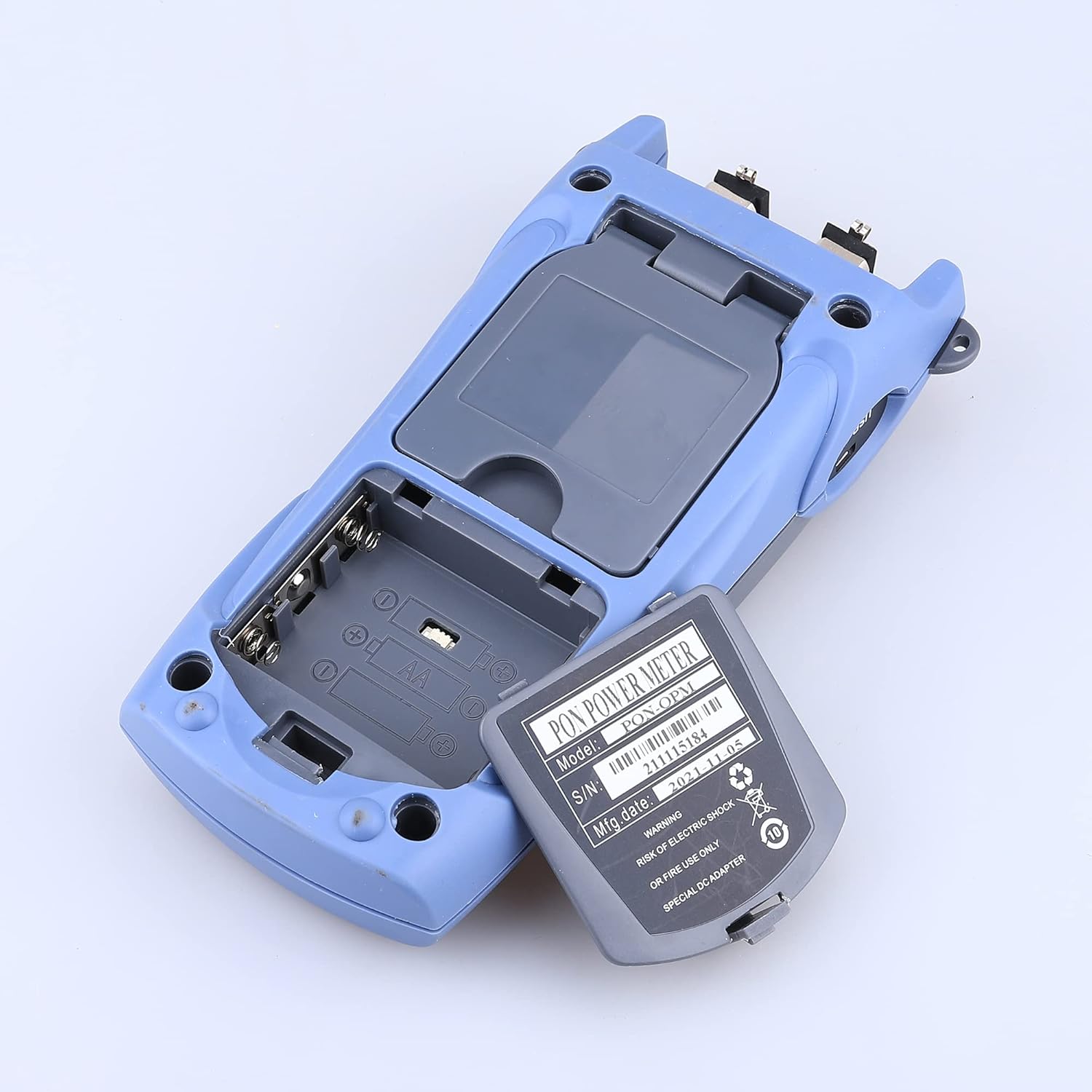

Optical Fiber PON Power Meter 1310/1490/1550nm FTTX/ONT/OLT Network Tester Handheld Optical Communication Test Instruments with FC/SC Adapter Interface (Connector Type UPC)
Product details
| Management number | 211306971 | Release Date | 2026/04/04 | List Price | $26.73 | Model Number | 211306971 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Function description Keys and ports description 1. ONT: uplink signal 1310nm detection port 2. OLT/VIDEO: downlink signal 1490/1 550nm detection port 3. USB: mobile power supply available, non charging 4. Display screen 5. ON/OFF&Auto shutdown key 6. REF: set reference power 7.Unit: switch display unit dBm/dB/mW 8. THR: set thethreshold 9.Load: save or view the saved results 10.SEL: in threshold setmode, switch the lower limit of threshold and the lower limit of alarm in threshold group;ln the view interface, switch to saved items Product List 1X PON Optical Power Meter 1X small bag 1X Instructions 2X FC converter
- Data storage Self calibration mode,support 10 datastorage functions.
- Two-port straight-through design During the test,the entire communication from theOLT to the ONT can be guaranteed
- Simultaneously measure theoutput power of the upstreamsignal, downstream datasignal and video signalof the PON network
| Color | Connector Type UPC |
|---|---|
| Brand Name | ANPTAIKE |
| Manufacturer | ANPTAIKE |
| Power Source | Battery Powered |
